Stacker

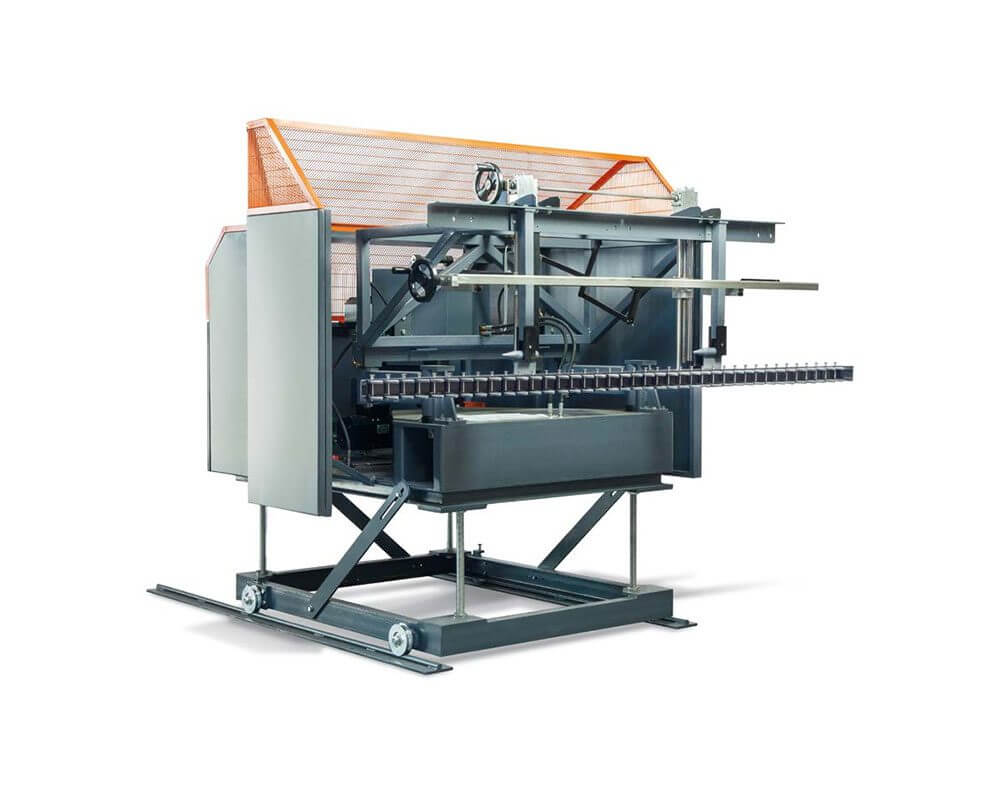

SDA 02 Dual Axis Servo Stacker

to move bottles into Annealing Lehr

Technical sheet

General Features

• Rotation and arm movements controlled by two identical brushless servo motors
• Installed on rails with easy and quick withdrawal system
• Push-bar with variable step inserts and ready to accept different type of inserts
• Inserts in graphite with easy change system
• Faster push-bar replacement
• Accurate and absolutely repeatable movements
• Extremely reduced maintenance
• Different types of cycle synchronization
• User-friendly operator interface
• Programming, saving, loading of configuration and production data
• Stabilization bar (optional) with height adjustment

Technical Data

• Cycle speed: up to 11.5 cycles per minute • Cross conveyor speed: up to 45 m/min
• Glass containers max. height: 450 mm

Push-Bar

• Max. width 4500 mm
• Min. inserts centre distance: 60 mm
• Inserts step: 20 mm
• Stroke in lehr direction: 415 mm
• Side shift stroke: 430 mm
• Admissible lehr belt height: 800 ÷ 950 mm • Min. fingers quote: 825 ÷980 mm
