Gob Distributor

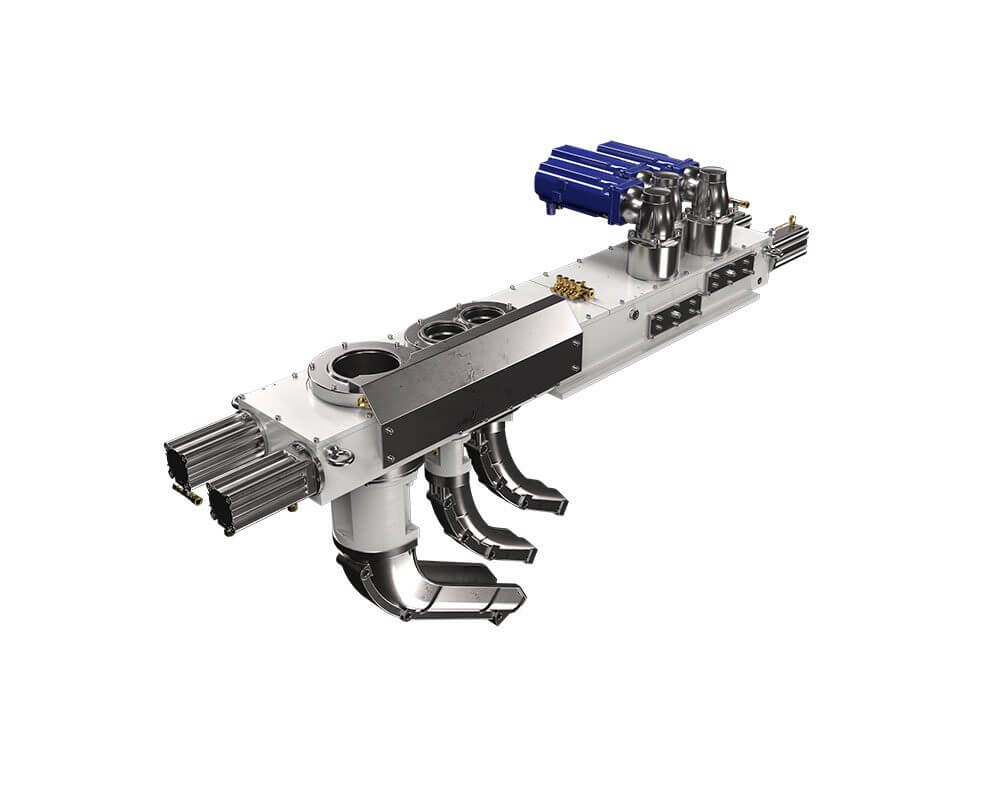

Multi Direct Drive Gob Distributor SG-DG

For a fast and precise gob delivery

Technical sheet

Main Data

• Max. Speed = 240 cuts/min
• Min. motion time = 100 msec
• Min. waiting time = 150 msec
• Max. jump = 64°
• Max. Ø funnel on SG = 120mm
• Max. Ø funnel on DG = 76mm


• Very low time changing in DG SG configuration thanks to deplacement screw located in mechanism frame
• Electronic independent position control for each scoop
• Possibility to align independently each scoop with trough
• Great improvement of gobs delivery on high production machines with multigobs delivery equipment
• High rigidity and low inertia for high performances
• Very low vibrations at high speed
• High dynamic response
• High reliability

Technical Features

• DG 76 mm and SG 120 mm heads integrated in the same mechanism
• Pneaumatic cylinders for the emergency central positioning
• Proximity switch for the control of the working position
• Interchangeable with the previous version
• Motion control with independent electronic cams per gob
• Emergency with stand-by position out of the glass flow
• Controlled by electronic integrated or stand-alone system
• Interface with any type of machine
• Programming of the data by operator’s computer or hand-terminal
• Easy and efficient trouble diagnostic
• Local control panel with start, stop, manual MODE, jog, emergency, hand terminal connector
• The mechanism, controlled by a pneumatic cylinder, has the possibility to rotate of 22
