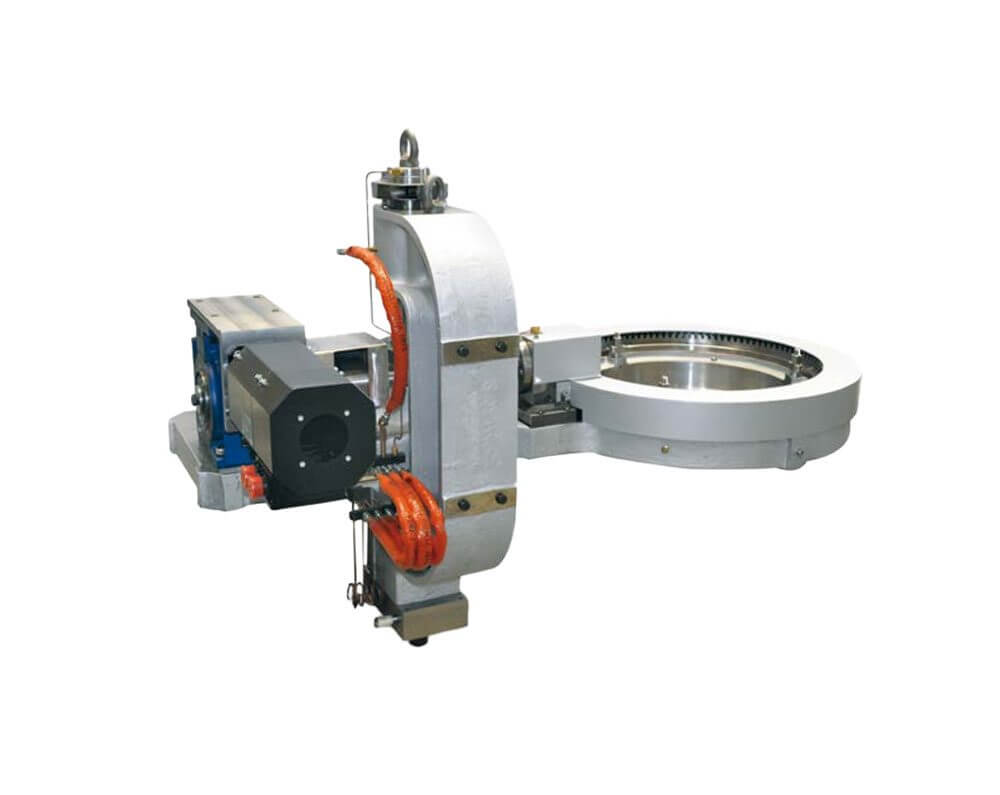

Gear Type Revolving Tube mechanism

Possibility to work in manual step or in close loop with weight control system integrated in BDF electronic control Available in DG and TG configuration.

Technical sheet

Mechanical Features

• Height adjusting stroke = 130 mm
• Tube supports size: 5”-6”-7”-8”-10”-12”
• Lifting mechanism with 0,5 mm of positioning stroke per revolution
• Tube rotation speed and direction controlled with brushless motor by the machine computer
• Air cooling with fanned or compressed air
• Torque limiting device to prevent damage to the refractory
• Ball bearing or carbon bearing for the tube support
• Manual or servo controlled lifting device
